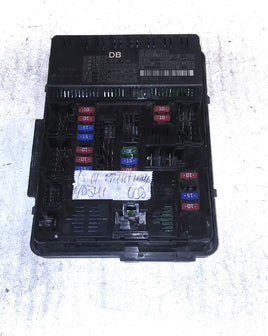

Totally Integrated Power Module OR FUSE BOX

The TIPM or fusebox panel is situated under the right-hand side of the instrument panel. To access the fuse box, remove the trim panel by pulling it towards you, swinging it out from the side, and taking it off. For reinstallation, align the tabs with the grooves on the panel and push it closed. To remove the fuse box cover, press the tabs on both sides and lift the cover off. To put it back, position the top part of the cover on the fuse panel and press the bottom part until it clicks into place. Give the cover a gentle tug to ensure it's properly fitted.

Where the fuse or TIPM located?

The fuse panel is located under the right-hand side of the instrument panel. To remove the trim panel for access to the fuse box, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the panel, then push it shut. To remove the fuse box cover, press in the tabs on both sides of the cover, then pull the cover off. To reinstall the fuse box cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly.

Totally Integrated Power Module OR FUSE BOX
